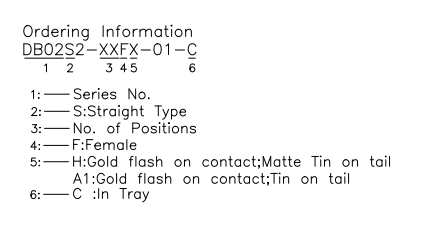

Model No: DB02S2-XXFX-XX-C

Specifications:
Material And Finish:
Shell :Steel Material,Front Shell Nickel Finished
     Back Shell TIN Finished
Insulator :PBT Thermoplastic，30% Glass Filled,
     UL 94V-0 Rated，Black Color
Contact Material :Brass
Contact Finish :Selective Gold Flash
Riveted Insert:Brass Material，Nickel Finished
With #4-40 Threaded Riveted Cinch Nuts


Rating:
Current Rating:1 Amps
Operating Temperature Range:-55°~+105°C


Electrical:
Contact resistance:20 Milliohms MAX
Insulator resistance:1000 Megohms Minimum
Withstanding Voltage:500V AC Min
